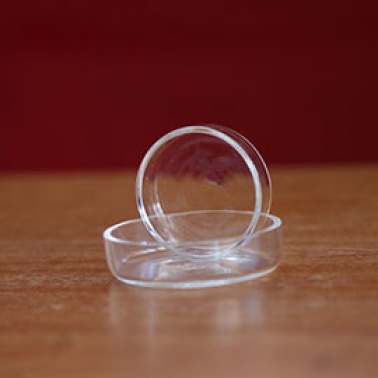

Chempure Quartz Dish

Fused silica, used as an industrial raw material, is crafted into various refractory shapes such as crucibles, trays, shrouds, and rollers. These shapes are essential for high-temperature thermal processes, including steelmaking, investment casting, and glass manufacturing.

Refractory shapes made from fused silica possess excellent thermal shock resistance and are chemically inert to most elements and compounds. They resist virtually all acids, regardless of concentration, except for hydrofluoric acid, which is highly reactive even at low concentrations.

Translucent fused-silica tubes are frequently used to encase electric elements in room heaters, industrial furnaces, and similar applications.

Quartz glassware is occasionally used in chemistry laboratories when standard borosilicate glass cannot endure high temperatures. It is often found as a basic element, such as a tube in a furnace or a flask, directly exposed to heat.

Technical Details of Chempure® Dish

Mechanical

Density 2.20 x 10³ Kg/m³

Young's Modulus 74 x 10⁶ KN/m²

Rigidity Modulus 32 x 10⁶ KN/m²

Compresive Strength 20 x 10⁶ KN/m²

Tensile Strength 70 x 10³ KN/m²

Shear Strength 70 x 10³ KN/m²

Moh's Hardness 6

Electrical

Electrical Resistivity 2 x 10¹⁹ ohm cm at 20^oC

2 x 10⁶ ohm cm at 800^oC

Dielectric Strength 10 KV/mm at 20^oC

2.5 KV/mm at 500^oC

Thermal

Strain Point 1385^oK

Annealing Point 1455^oK

Softening Point 1853^oK

Coefficient of Expansion 0.52 x 10^-6 per ^oC

Continuous Operating Temp. >1000^oC

Optical

Useful Optical Range Synthetic 180 - 2000nm

Natural 275 - 2000nm

Refractive Index n D (589 nm) - 1.458

Chemical

SiO₂ Content 99.995%

Total Metallic Impurities 10ppm (Typical)

Chemical Inertness

Fused quartz is chemically inert, with the exception of reacting to hydrofluoric acid and, at high temperatures, phosphoric acid. It reacts slowly with caustic alkalies at normal temperatures. Additionally, it does not react with water and steam under moderate temperatures and pressures. Detailed information, including transmission curves and levels of chemical impurities, is available upon request.

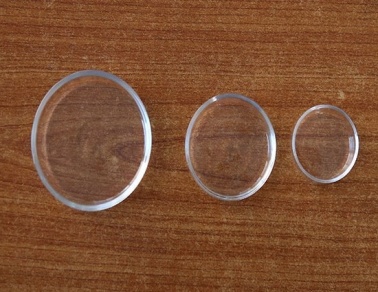

Quartz Dish, 15 mm Height
