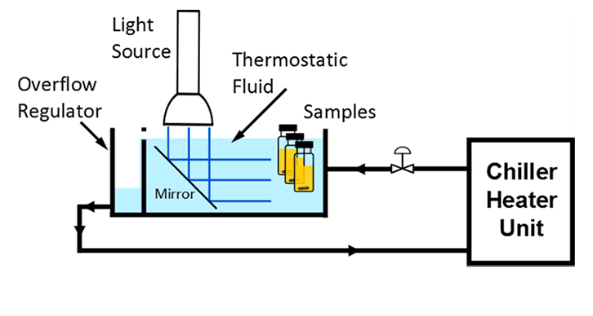

The EvoluChem™ PhotoRedOx Box TC photoreactor (US Patent #10,906,022) enables photo-catalytic reactions at controlled temperatures between 0°C to 80°C. The design is based on our original PhotoRedOx Box which features a unique reaction chamber geometry that directs light throughout the chamber, allowing the performance of multiple reaction conditions simultaneously (between 2 and 32 depending on the reaction vial sizes). However, with the aluminum-based, waterproof PhotoRedOx TC, it is possible to heat and cool the reaction medium using a thermostatic fluid (such as water or ethylene glycol) that recirculates through a standard chiller/heater unit.

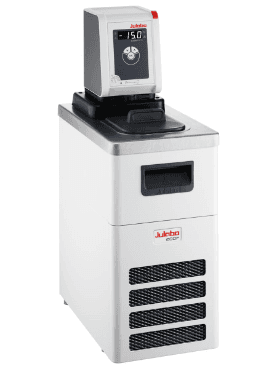

While most common chiller/heater units can be used with the PhotoRedOx Box TC, for USA/Canada clients we can offer the Julabo Corio 200F unit which works perfectly with our instrument.
Please contact us for more information.

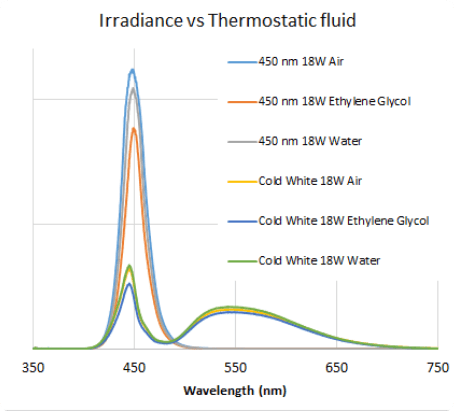

We investigated the possible influence of liquids on the light transmission. Water or ethylene glycol do not affect photoredox experiments.
