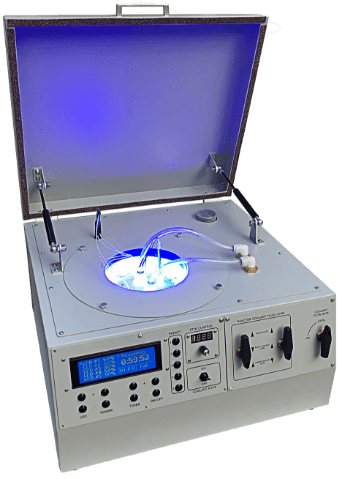

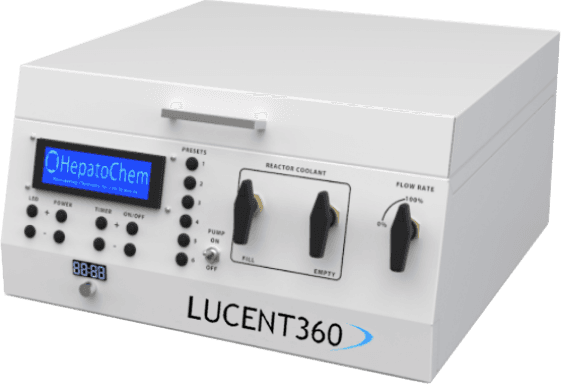

The LUCENT360™ is the most comprehensive photoreactor on the market. It’s patent pending design provides the most flexibility for parallel, large batch and flow photochemistry.
Reaction vials are immerged in a thermostatic bath controlled by an external heater/ chiller unit, enabling temperature controlled experiment conditions.
Light irradiation is provided by custom, interchangeable light modules that surround the reaction chamber.
The reaction chamber itself is comprised of 2 glass walls (Dewar) that thermally insulate light sources from the reaction vial bath.
Reaction vials can be thermostatically controlled (0° to 80° C) via a standard heater/chiller unit..
Reaction vials can be thermostatically controlled (0° to 80° C) via a standard heater/chiller unit..
Reaction vials can be thermostatically controlled (0° to 80° C) via a standard heater/chiller unit..

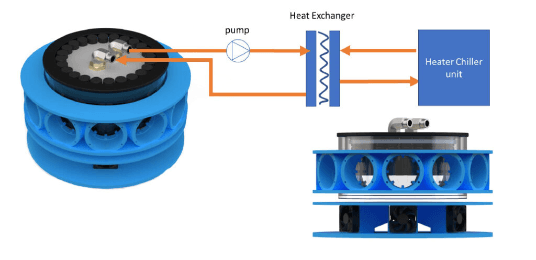

The LUCENT360™ advanced photoreactor includes standard circulation ports on all of its vial holders as well as an internal water pump and high performance heat exchanger.
Connecting the LUCENT360™ to a standard heater/chiller unit enables accurate temperature controlled reaction conditions (0° to 80° C) that are insulated from the heat of light modules. A temperature probe (included) can also connect to each of the LUCENT360 vial holders, allowing for precise measurements. Fill and flow rate is controlled by the manual valves accessed on the front panel.

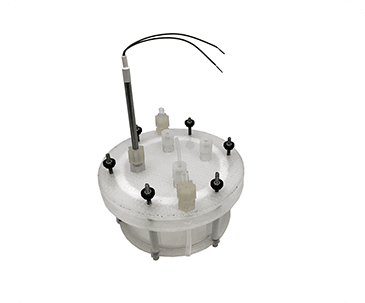

The 700ml reaction vial allows large batch photochemistry with the benefit of temperature controlled conditions.
The 700ml reaction vial allows large batch photochemistry with the benefit of temperature controlled conditions.
The 700ml reaction vial allows large batch photochemistry with the benefit of temperature controlled conditions.

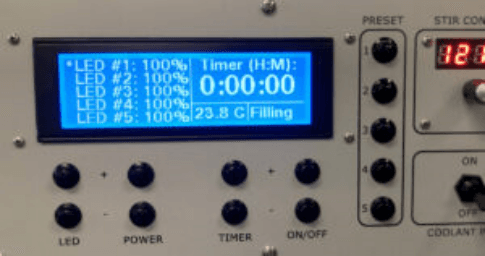

The LUCENT360™ includes 5 light modules that can be controlled independently. Each module has multiple LEDs that operate at a specific wavelength.

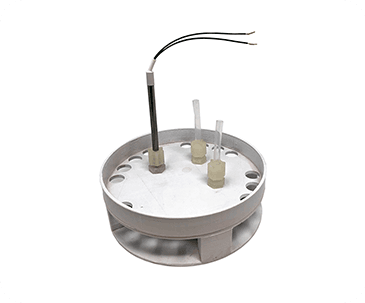

The light modules are interchangeable and, when using a divider in the reaction chamber, enables conditions that can screen multiple wavelengths or light intensities simultaneously.
LED #1: 100%
LED #2: 100%
LED #3: 100%
LED #4: 100%
LED #5: 100%
LED #1: 100%
LED #2: 100%
LED #3: 100%
LED #4: 100%
LED #5: 0
LED #1: 365nm
LED #2: 380nm
LED #3: 405nm
LED #4: 450nm
LED #5:
LED #1: 100%
LED #2: 80%
LED #3: 60%
LED #4: 40%
LED #5: 0%
A reaction was performed at 100 mL scale (5 mmol) with the Lucent360™ batch reactor (HCK1021-01-007) at 450 nm equipped with nitrogen inlet/outlet ports, a septum for syringing in reagents/sampling and a temperature probe. The reaction is cooled by an external chiller set at 25 °C.

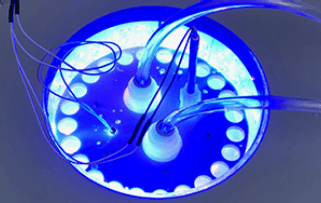

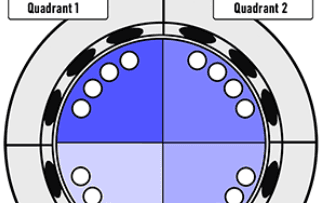

The Lucent360™ allows you to quickly investigate the reactions parameters necessary to scale up a reaction at small scale with production using the same instrument. We used it to screen multiple light intensities in one experiment

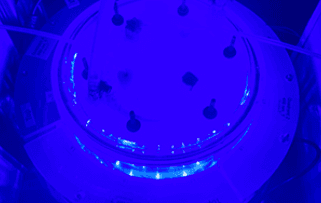

To measure the effective irradiation of samples in the Lucent360™, we performed actinometric experiments with several vial configurations.
| SKU / Product ID | Item | Description |
|---|---|---|
| HCK1021-01-020 | Lucent360 Advanced Photoreactor STARTER package | Lucent360 Advanced Photoreactor STARTER packageincludes: 1x Lucent 360 Advanced Photoreactor 1x Holder 4 ml vial 1x set of 450nm light modules (5 total) |
| HCK1021-01-021 | Lucent360 Advanced Photoreactor INTERMEDIATE package | 1x Lucent 360 Advanced PhotoreactorINTERMEDIATE package includes: 1x Holder 4 ml vial 1x Holder 20 ml vial 1x 4 ml screening holder 1x set of 365nm light modules (5 total) 1x set of 450nm light modules (5 total) |
| HCK1021-01-022 | Lucent360 Advanced Photoreactor EXPERT Package | 1x Lucent 360 Advanced Photoreactor EXPERT packageincludes: 1x Lucent 360 Advanced Photoreactor 1x Holder 0.3 ml vial 1x Holder 2 ml vial 1x Holder 4 ml vial 1x Holder 8 ml vial 1x Holder 20 ml vial 1x 700 ml photoreactor 1x 20 ml flow cell 1x 2 ml screening holder 1x 4 ml screening holder 1x 8 ml screening holder 1x set of 365nm light modules (5 total) 1x set of 380nm light modules (5 total) 1x set of 405nm light modules (5 total) 1x set of 450nm light modules (5 total) |
| HCK1021-01-023 | Julabo Corio-CD 200F | External Heater/chiller to control Lucent360 Advanced Photoreactor Temperature |
| HCK1021-01-001 | Lucent360 Advanced Photoreactor | Lucent 360 Advanced Photoreactor (no parts or accessories) |
| HCK1021-01-002 | Lucent360 Holder 0.3 ml vial | Holder for 48 x 0.3 ml vial 6 mm diameter |
| HCK1021-01-003 | Lucent360 Holder 2 ml vial | Holder for 24 x2 ml vial 12 mm diameter |
| HCK1021-01-004 | Lucent360 Holder 4 ml vial | Holder for 24 x 4 ml vial 15 mm diameter |
| HCK1021-01-005 | Lucent360 Holder 8 ml vial | Holder for 24 x 8 ml vial 17 mm diameter |
| HCK1021-01-006 | Lucent360 Holder 20 ml vial | Lucent360 Holder 20 ml vial |
| HCK1021-01-007 | Lucent360 700 ml Reactor | Large format 700 ml reactor |

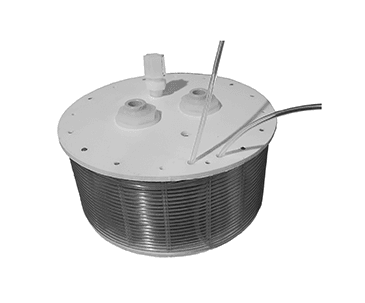

| HCK1021-01-008 | Lucent360 20 ml Flow Cell (Reactor) | PFA tubing, 20 ml Flow Reactor |
| HCK1021-01-009 | Lucent360 2 ml Multi-screen Holder | Multi-screen vial holder with 4 sections of 4 x 2 ml vial 12 mm diameter |
| HCK1021-01-010 | Lucent360 4 ml Multi-screen Holder | Multi-screen vial holder with 4 sections of 4 x 4 ml vial 15 mm diameter |
| HCK1021-01-011 | Lucent360 8 ml Multi-screen Holder | Multi-screen vial holder with 4 sections of 4 x 8 ml vial 17 mm diameter |
| HCK1021-01-012 | Lucent360 Side LED 365 nm | One (1) Side LED light module at 365 nm for Lucent 360 (Side LED modules are interchangeable) |
| HCK1021-01-013 | Lucent360 Side LED 380 nm | One (1) Side LED light module at 380 nm for Lucent 360 (Side LED modules are interchangeable) |
| HCK1021-01-014 | Lucent360 Side LED 405 nm | One (1) Side LED light module at 405 nm for Lucent 360 (Side LED modules are interchangeable) |
| HCK1021-01-015 | Lucent360 Side LED 450 nm | One (1) Side LED light module at 450 nm for Lucent 360 (Side LED modules are interchangeable) |
| HCK1021-01-016 | Lucent360 Bottom LED 365 nm | One (1) Bottom LED light module at 365 nm for Lucent 360 |
| HCK1021-01-017 | Lucent360 Bottom LED 380 nm | One (1) Bottom LED light module at 380 nm for Lucent 360 |
| HCK1021-01-018 | Lucent360 Bottom LED 405 nm | One (1) Bottom LED light module at 405 nm for Lucent 360 |
| HCK1021-01-019 | Lucent360 Bottom LED 450 nm | One (1) Bottom LED light module at 450 nm for Lucent 360 |
