HCK1006-01-016Our original photoreactor’s patented design is compatible with most vial formats (0.3 ml, 2 ml, 4 ml, 8 ml and 20 ml vials) and its compact design allows for use with any stirring plate. A built-in fan keeps the reaction conditions at room temperature
The chemist who seeks to standardize laboratory photochemical setups economically. A flexible design allows interchangable LED from 365 to 740 nm and a wide variety of vials
HCK1006-01-023The PhotoRedOx Duo uses the same patented concept as our original photoreactor but doubles the capacity and includes an additional reaction chamber. The Duo can hold double the capacity as the single box
The chemist who seeks higher reaction capacity and increased light intensity than found in the PhotoRedOx box
HCK1006-01-025Based on the same design as the PhotoRedOx Box, the TC version with a standard chiller/heater unit (not included) makes it possible to perform photocatalytic reactions at controlled temperatures at 0 °C to 80 °C
The chemist who wants control over the temperature of their reaction while keeping the flexibility and control of the PhotoRedOx Box
HCK1021-01-001The next generation in photoreactors. The first reactor to allow screen to scale, batch and flow in one device with unparrallel control over wavelength, light intensity and temperature control
The chemist serious about understanding all the factors necessary to take reaction from screen to scale in batch and flow. The most advanced photoreactor available anywhere
Vial size
Samples/reaction
Flow
Suggested light source
Compatible LEDs
Wavelengths available
Light intensity
Dimmable
Temperature Control
Chiller fittings
Suggested chiller
Stirring
Dimemsions ( L x H x D )
Power requirements
Relative Price
Operating requirements
Related accessories
Notes
0.3 ml to 20 ml
32 max
2 ml Flow cell available
1x - EvoluChem™ LEDs SX or DXFormat
Compatible w most PAR20 (2.5 in diameter style LED) sources

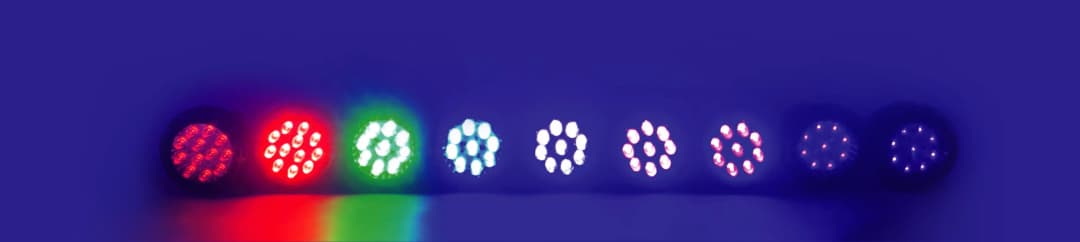

multiple options from 365 to 740 nm
based on the attached LEDsource
based on the attached LEDsource
Built in fans hold internalreactor temperature ~30 °Cdepending on light source
N.A.
N.A.
external stir plate required
6.5” X 4.875” X 4.875
110V AC/ 12V DC (US/UK) or220V AC/ 12V DC (EU)
$
external stir plate, light source, chemical fume hood (if applicable), protective eyewear, safety shield
LightsHoldersFlow CellLight proofing UpgradeEvoluChem™ kitsSafety Accessories
US Patent #10,906,022
0.3 ml to 20 ml
64 max
2 ml Flow cell available
2x - EvoluChem™ LEDs SX or DXFormat
Compatible w most PAR20 (2.5 in diameter style LED) sources
multiple options from 365 to 740 nm
based on the attached LEDsource
based on the attached LEDsource
Built in fans hold internalreactor temperature ~30 °Cdepending on light source
N.A.
N.A.
external stir plate required
10.75” X 4.875” X 7”
110V AC/ 12V DC (US/UK) or220V AC/ 12V DC (EU)
$$
external stir plate, light source, chemical fume hood (if applicable), protective eyewear, safety shield
LightsHoldersFlow CellLight proofing UpgradeEvoluChem™ kitsSafety Accessories
US Patent #10,906,022
0.3 ml to 20 ml
32 max
2 ml Flow cell available
1x - EvoluChem™ LEDs SX or DXFormatC
Compatible w most PAR20 (2.5 in diameter style LED) sources
multiple options from 365 to 740 nm
based on the attached LEDsource
based on the attached LEDsource
External heater/chiller allowsoperature being 0 °C to 80 °C
3/8 inch ID tubing
Julabo Corio 200F
external stir plate required
6.875” X 4.75” X 7.75”
N.A.
$$$
chiller/heater unit, external stir plate, light source, chemical fume hood (if applicable), protective eyewear, safety shield
LightsHoldersFlow Cell
EvoluChem™ kitsSafety Accessories
US Patent #10,906,022
0.3 ml to 700 ml
32 max
2 ml Flow cell available
1x - EvoluChem™ LEDs SX or DXFormaC
Compatible w most PAR20 (2.5 in diameter style LED) sources
multiple options from 365 to 740 nm
based on the attached LEDsource
based on the attached LEDsource
External heater/chiller allowsoperature being 0 °C to 80 °C
3/8 inch ID tubing
Julabo Corio 200F
external stir plate required
6.875” X 4.75” X 7.75”
120 V or 240 V
$$$
chiller/heater unit, chemical fume hood (if applicable)
Multi-light screener/n700 ml Reactor20 ml Flow cell
Patent pending
